Elliott tools
TUBE SERVICES
อุปกรณ์สำหรับระบบท่อในโรงงานอุตสาหกรรมแบบครบวงจร
Elliott
Tube Installation
การติดตั้งท่อในระบบแลกเปลี่ยนความร้อน
Heat Exchanger
Boiler
Condenser
Tube Expanders
อุปกรณ์สำหรับเบ่งท่อให้แนบชิดกับ Tube Sheet
Tube Expanders : อุปกรณ์เบ่งท่อ
As the original tube tool company, Elliott invented and perfected the tube expander. Elliott manufactures tube expanders for many applications including condensers, chillers, heat exchangers, firetube and watertube boilers, and sugar vacuum pans.
| Tube Size: 0.250″ to 4.000″ (6.4 -101.6mm) OD |
Chiller

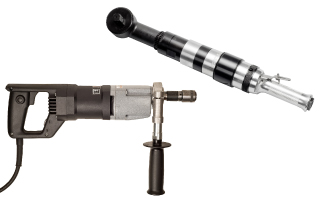

Tube Rolling Motors
เครื่องสำหรับหมุนท่อให้แนบชิดกับ Tube Sheet
Tube Rolling Motors : เครื่องหมุนท่อ
Elliott has a full line of tube rolling equipment to suit your application needs. Elliott has both electric and pneumatic tube rolling motors that work powerfully to expand tubes in the most demanding applications.
| Tube Size: 0.250″ to 6.000″ (6.4 – 152mm) OD |
Assisted Tube Rolling Systems
Assisted Tube Rolling Systems
Elliott offers 3 different assisted tube rolling systems: Table Hawk, Rapid Hawk, and the Monster Hawk. Each system comes equipped with a variety of features to suit a specific industry application.
| Tube Size: 0.25″ to 3.00″ (6.35 – 76.2mm) OD |

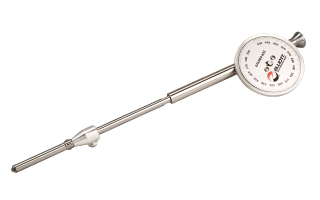

Tube Hole Gauges
Tube Hole Gauges
Elliott’s Tube Hole Gauges make it easy to accurately measure tube IDs and tube sheet holes found in vessels such as heat exchangers, chillers, and surface condensers.
| Tube Size: 0.375” to 2.000” (9.5 – 51.0mm) OD |

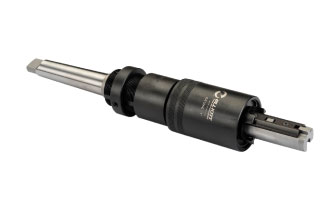

Grooving (Serrating) Tools
Grooving (Serrating) Tools
Elliott’s GT Series Grooving Tools, also known as Serrating Tools, can be used manually to clean up existing grooves or can be used in milling or drilling equipment for OEM tube sheet thicknesses of 3/8” (9.5mm) through 2-1/8” (54.0mm).
| Tube Size: 0.375″ to 3.000″ (9.5 – 76.2mm) OD |

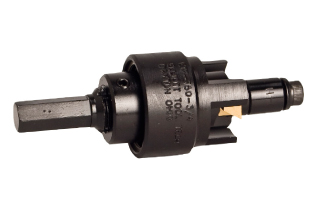

Tube End Facers
Tube End Facers
Elliott’s ETF Series Tube End Facers are ideal for trimming heat exchanger, condenser, and chiller tubes to a specific tube projection after tube expansion.
| Tube Size: 0.375″ to 1.500″ (9.5 – 38.1mm) OD |

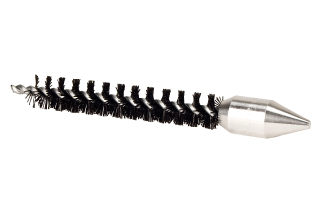

Tube Pilots
Tube Pilots
Elliott’s Tube Pilots, also known as Tube Guides, are used to pilot replacement tubes through tube sheets and tube support plates that are commonly found in heat exchangers and surface condensers.
| Tube Size: 0.500” to 1.500” (12.7 – 38.1mm) OD |

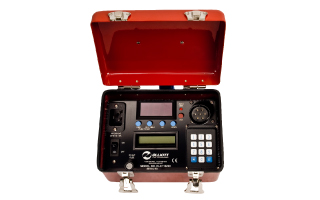

Electric Torque Controller
Electric Torque Controller
Elliott’s ELC110220 is the first torque control with an Embedded Logic Controller that senses and is compatible with both 110V or 220V automatic, and manual reverse rolling motors.
| Tube Size: 0.250″ to 3.000″ (6.4 – 76.2mm) OD |
| Voltage: 110V to 240V |
| Languages: English or Spanish |
| Compatibility: Elliott’s 99 Series Electric Rolling Motors (other electric motors with optional adapters) |
| Auto-Reverse |

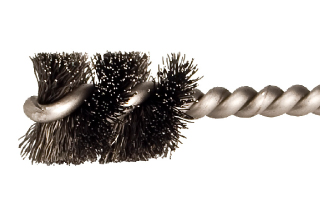

Tube Sheet Hole Brushes
Tube Sheet Hole Brushes
Elliott’s Tube Sheet Hole Brushes clean and remove hard deposits from tube sheets and support plate holes in surface condensers and heat exchangers.
| Tube Size: 0.250” to 1.250” (6.4 – 31.8mm) OD |

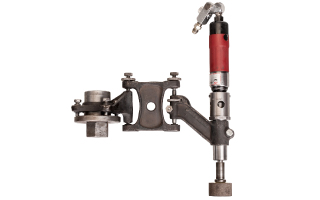

Hand Hole Seat Grinder
Hand Hole Seat Grinder
Elliott’s Hand Hole Seat Grinder is air-powered, light, easy to handle, and precision-engineered to reface boiler header seats.
| Seat Width: 0.187″ to 0.656″ (4.8 – 16.7mm) |

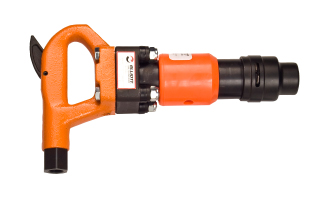

Pneumatic Hammer
Pneumatic Hammer
Elliott’s Pneumatic Hammer is the recommended tool for removing tube stubs in heat exchangers or beading tubes in firetube boilers.
| Tube Size: 0.250″ to 3.000″ (6.4 – 50.8mm) OD |
