Elliott

Tube & Pipe Cleaners

การทำความสะอาดระบบแลกเปลี่ยนความร้อน

Heat Exchanger

Boiler

Condenser

Chiller

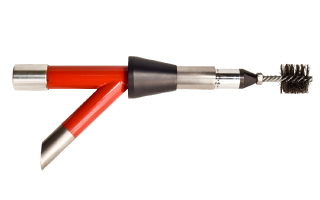

Soot Buster: Firetube Boiler Tube Cleaning System

Soot Buster: Firetube Boiler Tube Cleaning System

The Soot Buster, used for cleaning firetube boiler tubes, is a pneumatically actuated cleaning tool that propels itself inside of tubes and scrubs the tube ID with each pulse.

Tube Size: 1-1/4″ to 4″ (31.8 – 101.6mm) OD
Tube Section: Straight
Deposit Type: Soft (Soot)
Thickness: Light & Medium
Flush: Dry

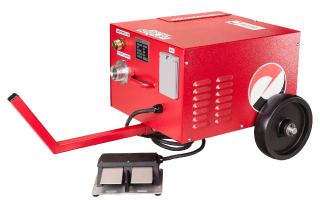

Roto-Jet: Rotary Tube Cleaning System

Roto-Jet: Rotary Tube Cleaning System

Elliott’s Roto-Jet Tube Cleaning Systems are an effective solution to increasing chiller, condenser, and other heat exchanger efficiency.

Tube Size: 0.312″ to 2.0″ (7.9 – 50.8mm) ID
Tube Section: Straight or Curved
Type: Soft, Gummy, Or Organic
Thickness: Light to Medium
Flush: Wet & Dry

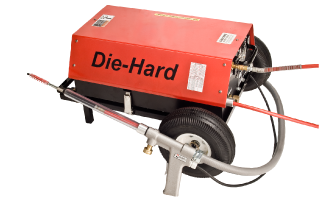

Die-Hard™: Cableless Tube Cleaner

Die-Hard™: Cableless Tube Cleaner

Elliott’s Die-Hard™ is the first cableless tube cleaner that successfully cleans light to medium deposits found in chiller, condenser, and heat exchanger tubes.

Tube Size: 3/4″ to 1″ (19.1 – 25.4mm) OD
Tube Section: Straight
Deposit Type: Soft, Gummy, or Organic
Thickness: Light to Medium
Flush: Wet

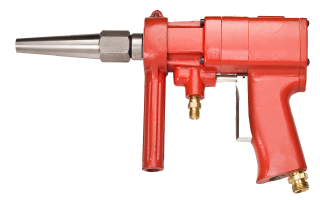

5224XL & 5125 Series: Heat Exchanger Cleaners

5224XL & 5125 Series: Heat Exchanger Cleaners

Elliott’s Heat Exchanger Tube Cleaners utilize a rigid shaft to provide high torque cleaning to remove hard deposits often found in heat exchanger tubes. These cleaners are ideal in sugar mills, paper mills, chemical plants, and oil refineries.

Tube Size: 1/2″ to 2.0″ (9.5 – 50.8mm) OD
Tube Section: Straight
Deposit Type: Soft, Gummy, Organic, Hard Powder, & Rock Solid
Thickness: Light, Medium, Heavy
Flush: Wet & Dry

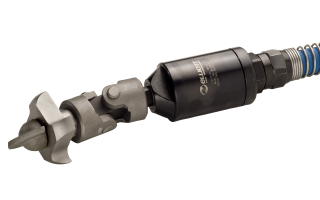

Aluminum Siphon Tube Cleaners: Turbine Style Tube Cleaners

Aluminum Siphon Tube Cleaners: Turbine Style Tube Cleaners

Elliott’s powerful turbine style motors and drill heads offer aggressively fast cleaning and are engineered specifically for aluminum siphon tubes.

Tube Size: 2.875″ to 4.750″ (73.0 – 120.65mm) ID
Tube Section: Curved
Deposit Type: Hard Powder & Rock Solid
Thickness: Heavy
Flush: Dry

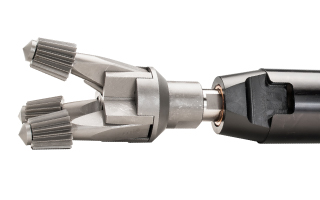

ET Series Pipe Rattling Equipment: Oil Field Pipeyard Cleaning Motors & Heads

ET Series Pipe Rattling Equipment: Oil Field Pipeyard Cleaning Motors & Heads

The ET Series pipe rattling motors and heads are designed and tested using advanced engineering principles to confidently withstand tough cleaning applications and provide long tool life.

Tube Size: 3/4” to 5-7/8” (19.05 – 149.235mm) OD
Tube Section: Straight
Deposit Type: Hard Powder & Rock Solid
Thickness: Medium to Heavy
Flush: Dry

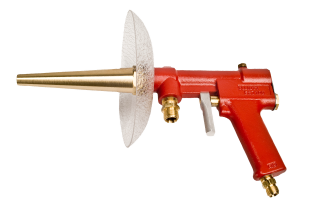

Jumbo Jiffy Gun: Shoot Through Tube Cleaning System

Jumbo Jiffy Gun: Shoot Through Tube Cleaning System

The Jumbo Jiffy Gun is powered by an air and water combination to propel reusable shoot through devices. Elliott’s Jumbo Jiffy Gun is the preferred method for cleaning condenser tubes in power utility plants, pulp, paper, steel mills, and petrochemical plants.

Tube Size: 3/8″ to 1-1/4″ (9.5 – 31.8mm) OD
Tube Section: Straight
Deposit Type: Soft, Gummy, or Organic
Thickness: Light & Medium
Flush: Wet

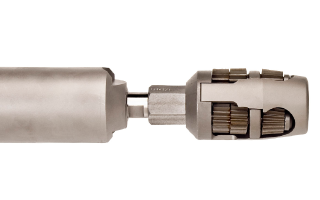

Pipe Rattling Equipment

Pipe Rattling Equipment

These product kits have been specially designed for the oil field. They are recommended for the most common sizes used in the oil field today.

Tube Size: 2.375″ to 20.000″ (60.3 – 508.0mm)
Tube Section: Straight
Deposit Type: Hard Powder and Rock Solid
Thickness: Medium to Heavy
Flush: Dry

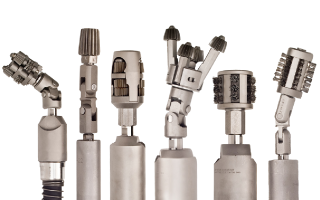

Turbine Style Tube Cleaners: D600, 1100, & 1300 Series

Turbine Style Tube Cleaners: D600, 1100, & 1300 Series

The air turbine style motor design provides an immediate and powerful startup to drive the cleaning head down the tube at a high speed, removing light to medium deposits of scale, mud, and other process residues.

Tube Size: 0.495″ to 13.225″ (12.57 – 335.9mm) OD
Tube Section: Straight & Curved
Deposit Type: Soft, Gummy, Organic, Hard Powder, & Rock Solid
Thickness: Light to Heavy
Flush: Dry

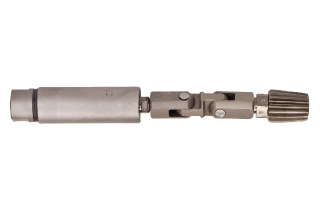

Gas Line Renewal

Gas Line Renewal

The air turbine style motor design provides an immediate and powerful startup to drive the cleaning head down the tube at a high speed, removing light to medium deposits of scale, mud, and other process residues.

Tube Size: 0.750″ to 1.500″ (19.05 – 38.10mm)
Tube Section: Straight
Deposit Type: Soft, Gummy, Organic, and Hard Powder
Thickness: Light to Medium
Flush: Dry
