Elliott tools
TUBE SERVICES
อุปกรณ์สำหรับระบบท่อในโรงงานอุตสาหกรรมแบบครบวงจร
Elliott
Tube Removal
การถอดท่อในระบบแลกเปลี่ยนความร้อน
Heat Exchanger
Boiler
Condenser
Chiller

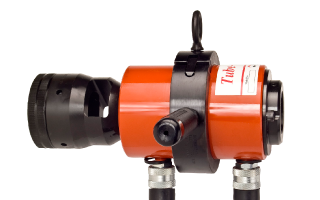

Tube Tuggers
Tube Tugger
Tube Tugger
Semi-Continuous Hydraulic Tube Pulling System
Elliott’s Tube Tugger is a powerful continuous hydraulic tube pulling system for removing any type of tube material effortlessly from heat exchangers, chillers, and other heat transfer vessels.
| Tube Size: 0.625” to 1.250” (15.9 – 31.8mm) OD |
| Type: Tube Puller |
| Application: Heat exchangers, chillers, and other heat transfer vessels |
| Pulling Capacity: 30 Ton (27Mt) |
| Stroke: 3″ (76.2mm) |

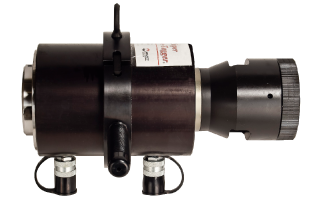

Super Tube Tugger
Super Tube Tugger
Semi-Continuous Hydraulic Tube Pulling System
Elliott’s Collet Style Tube Tugger was designed for fast and efficient tube removal in condensers, chiller, and other heat exchangers. With its 6 Ton pulling capacity, the Collet Style Tube Tugger automatically grips, pulls, and releases the tube in a matter of seconds.
| Tube Size: 1.500” to 2.000” (38.1 – 50.8mm) OD |
| Type: Tube Puller |
| Application: Boilers and Surface Condensers |
| Pulling Capacity: 60 Ton |
| Stroke: 4″ (101mm) |
